| The USB-5800/4700 series USB DAQ modules from Advantech are well-suited for various industrial applications demanding convenient, portable I/O capabilities. Featuring a plug-and-play USB interface, these modules enable users to effortlessly enhance or update their system's I/O functionality. This is particularly useful for systems lacking PCI/PCIe expansion. |
| |
|
| |
| Feature highlights |
| Ease of Use |
| • |

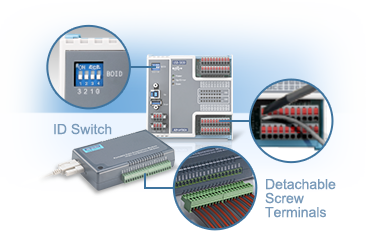

Detachable Screw Terminal with On-Module Pin Assignment Index |
| • |
The front-facing LED indicators, ID switch, and terminal blocks provide convenient access for easy installation and maintenance (USB-5800 series Only) |
|
|
|
|
 |
| Safety and Reliability |
| • |

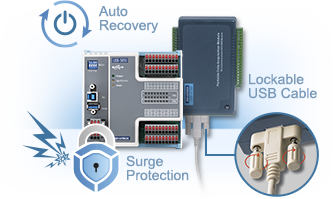

Advantech provides lockable USB cables to prevent them from being unplugged accidentally. |
| • |
Equipped with Level 3 electrostatic discharge and surge protection. (USB-5800 series only) |
| • |
Features advanced functionalities, such as Auto Recovery, Output-Locker, and link reconnection, to ensure zero failures. (USB-5800 series only) |
|
|
|
|
|
| Expandability |

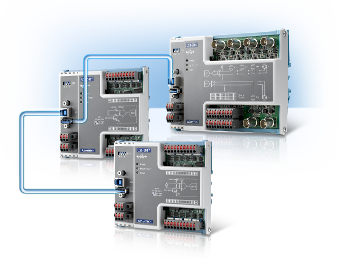

| Support daisy chaining of up to five modules, which eliminates the need to adopt a USB hub to expand the system I/O. (USB-5800 series only) |
|
|
|
|
| |
| Application Scenarios |
 |
Systems without
PCI/PCIE slots |
|
 |
All PCI/PCIe slots of the existing
system are already occupied. |
|
 |
Palm-sized design is suitable
for small cabinet |
|
|
|
| |
|
|
|
| |
| |
| Product Offerings |
| USB-4716 |
| |
 |
| |
| 200 kS/s, 16-Bit, 16-Ch Multifunction USB Module |
|
|
|
|
| USB-5817 |
| |
 |
| |
| 200 kS/s, 16-Bit, 8-ch Analog Input USB 3.0 Module |
|
|
|
|
| USB-4711A |
| |
 |
| |
| 150 kS/s, 12-Bit, 16-Ch Multifunction USB Module |
|
|
|
|
| USB-5820 |
| |
 |
| |
200 kS/s, 4-ch, 16-bit Isolated
Analog Output USB 3.0 I/O Module |
|
|
|
|
| USB-5830 |
| |
 |
| |
| 16-ch Isolated DI and 16-ch Isolated DO USB 3.0 I/O Module |
|
|
|
|
| USB-5860 |
| |
 |
| |
8-ch Isolated Digital Input and
8-ch Relay USB 3.0 I/O Module |
|
|
|
|
|
|
|
| |
| Discover More |
| Modular and Scalable DAQ Solution |
| iDAQ-934 |
| |
 |
| |
| 4-Slot USB 3.0 iDAQ Chassis |
|
|
|
|
| iDAQ-801 |
| |
 |
| |
4-ch, 24-bit, 256kS/s IEPE
sensor input iDAQ module |
|
|
|
|
| iDAQ-817 |
| |
 |
| |
8-ch, 16-bit, 200kS/s
Analog Input iDAQ module |
|
|
|
|
|
|
| |
|
 |
