| High Computing Performance PPC-600 Series |
Configurable Panel PCs for enhanced image visualization and
data processing capabilities
|
|
|
|
|
Advantech’s PPC-600 series has a panel PC chassis developed for Mini-ITX motherboards. It offers multiple sizes, from small to wide screens: 12''/15''/17''/19''/15.6''/18.5''/21.5''.
PPC-600 can support Mini-ITX motherboards and has a modular design, with extra ports and expansion slots for diverse applications including machine control, data visualization, and process management. |
|

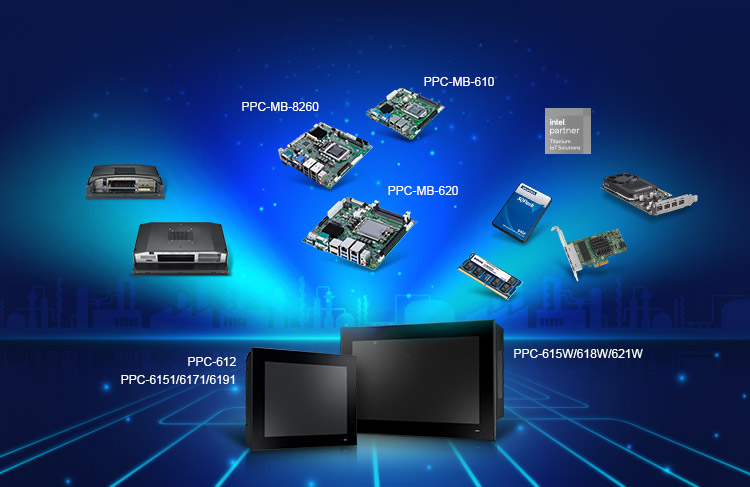

| Multiple combinations of chassis and motherboard |
| Advantech keeps expanding the PPC-600 series to provide more options |
|
|
|
|
|
|
|
| Advanced front panel |
| Three sizes (15.6", 18.5", 21.5") feature wide screens with Projective Capacitive Touch (PCT) and IP66 certification for dust and water protection. |
|
|
|
|

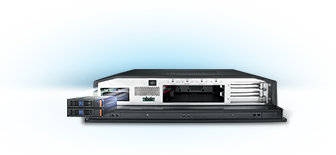

| Dual SSD drawer |
| Designed for easy and convenient SSD replacement at any time on the PPC-618w and PPC-621w with hot-swap support. |
|
|
|
|
| Wide voltage power input |
| The PPC-600 series supports wide voltage input adaptable to voltages of various regions and industries. |
|
|
|
|
|

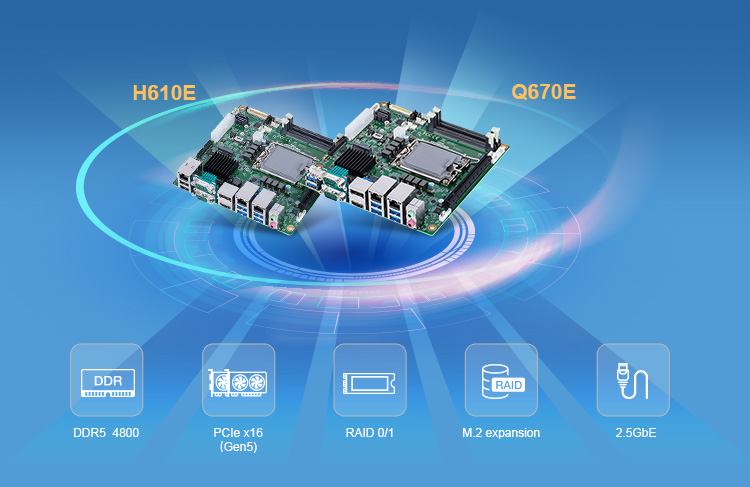

| PPC-MB-620 Mini ITX Motherboard |
| With 12th Gen Intel® Core™ i processor |
|
|
|
|
|
HQ610E has three network ports, and Q670E has two network ports
- Support for up to three Ethernet connections with a transfer rate of up to 2.5 Gbps
- Supports dual-channel DDR5 up to 4800MHz SDRAM, max.64GB
- Supports 1 x PCIe x16 slot (Gen5)
- Supports 3 x M.2 expansion connections
- 1 x slot (2280 M-Key) for storage
- 1 x slot (2230 E-Key) for wireless
- 1 x slot (3042 & 3052 B-Key) for a 5G module
- Supports RAID 0/1
|
|
|
|
| Four sizes of PPC-600 Series |
|
|
|
 |
| 12'' |
| PPC-612 |
 |
|
 |
| 15.6'' |
| PPC-615W |
|
|
 |
| 18.5'' |
| PPC-618W |
|
|
 |
| 21.5'' |
| PPC-621W |
|
|
|
|

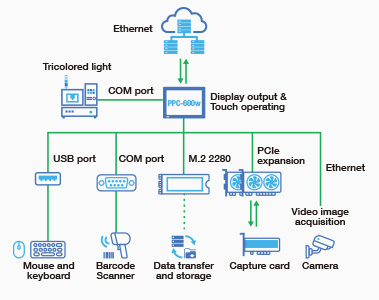

Data Processing For Pharmaceutical and
Medical Applications |
|
|
|
|
|

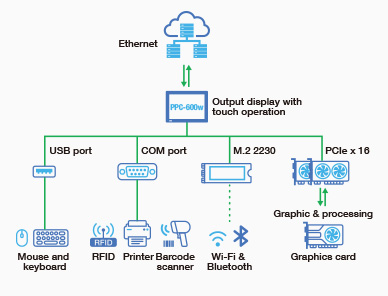

Intelligent Electronics and Automotive
Manufacturing |
|
|
|
|
|
| |
 |
