Extreme Temperature Embedded Boards
Rated for Extreme Temperatures (-40°~ 85°C)

Discover Extreme Temperature Reliability

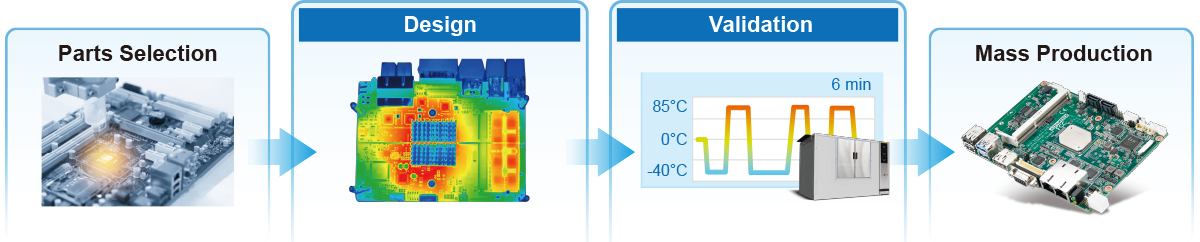

From Component Selection to Mass Production

Advantech offers a variety of wide temperature(-40°~ 85°C)and extreme temperature (-20°~ 80°C) embedded single board computers with cutting edge thermal design features from component selection to mas production, making them ideal for outdoor or harsh environments. Select from below for system designs that can handle the temperature challenges of your next project.

Key component selection to meet extreme temp. requirements

Schematic design, layout & placement withstands -40°~ 85°C

Validation meets IEC industrial test criteria (IEC60068-2-1, IEC60068-2-2, IEC60068-2-78, IEC60068-2-14)

100% temp. screening during manufacturing

Extreme Temp. 2.5” & 3.5” Single Board Computers


	MIO-2263EZ22GS3A1E	MIO-2361EW-S7A1	MIO-5391C7Z2-H0A1
Form Factor	2.5” Pico-ITX SBC	2.5" SBC	3.5" SBC
Processor	Intel® Atom E3825	Intel® Atom E3950	Intel Core i7-7820EQ
Memory	Bundled 2GB	4GB	4GB
Display	24-bit LVDS, VGA	HDMI+48-bit LVDS	HDMI + LVDS Dual HDMI + LVDS
I/O Ports	2 x COM 1 SATA, 1 x USB 3.0 3 x USB 2.0 1 x Half-size Mini PCIe mSATA	2 x Intel i210 GbE 2 x COM 1 x SATA 2 x USB3.0 SMBus/I2C 16-bit GPIO M.2 E-key 2230 F/S Mini PCIe Opt. mSATA	2 x Intel i210 GbE 1 x COM 2 x SATA 4 x USB3.0 SMBus/I2C 16-bit GPIO M.2 E-key 2230 F/S Mini PCIe Opt. mSATA
Operating Temperature	-40 ~ 85° C	-40 ~ 85° C	-40 ~ 85° C
	Learn More Datasheet	Learn More Datasheet	Learn More Datasheet

SEE ALL SOLUTIONS

Check datasheet for detailed system specifications

Extreme Temp. COM-Express Modules


	SOM-5992D8X-S6A1	SOM-6898CRZ2-U4A1E	SOM-7567CS0XB-S9A1
Form Factor	COM-Express Basic	COM-Express Compact	COM Express Mini
Processor	Intel® Xeon® D-1539	Intel® Celeron 3965U	Intel Atom E3845
Memory	Up to 64 GB	DDR4 Non-ECC	4GB
Display	N/A	VGA, LVDS, DDI	LCD + DDI
I/O Ports	2 x COM Port 4 x USB 3.0 4 x USB 2.0 GPIO 1 x PCIe x16 Gen.3 1 x PCIe x8 Gen.3	2 x COM Port 4 x USB 3.0 8 x USB 2.0 GPIO 2 x SATA	2 x COM Port 1 x USB3.0 4 x USB2.0 1 x 8-bit GPIO 1 x SATA 3 x PCI Exress x1
Operating Temperature	-40 ~ 85° C	-40 ~ 85° C	-40 ~ 85° C
	Learn More Datasheet	Learn More Datasheet	Learn More Datasheet

SEE COMPLETE SELECTION

Check datasheet for detailed system specifications

Extreme Temp. PC/104 Modules


	PCM-3365EW-S9A1E	PCM-3365EW-S3A1E	PCM-3353Z2-L0A3
Form Factor	PC/104 Module	PC/104 Module	PC/104
Processor	Intel® Atom™ E3845	Intel® Atom™ E3825	AMD Geode™ LX800 500 MHz
Memory	SODIMM up to 8GB	SODIMM up to 8GB	1GB
Display	VGA, HDMI/DVI, LVDS	VGA, HDMI/DVI, LVDS	VGA+TTL VGA+LVDS
I/O Ports	3 x COM Ports 6 x USB 2.0 1 x SATA PCI-104 PC/104 Full-size Mini PCIe	3 x COM Ports 6 x USB 2.0 1 x SATA PCI-104 PC/104 Full-size Mini PCIe	4 x COM Ports 4 x USB 2.0 1 x GbE 1 x PATA 1 x PC/104
Operating Temperature	-40 ~ 85° C	-40 ~ 85° C	-40 ~ 85° C
	Learn More Datasheet	Learn More Datasheet	Learn More Datasheet
