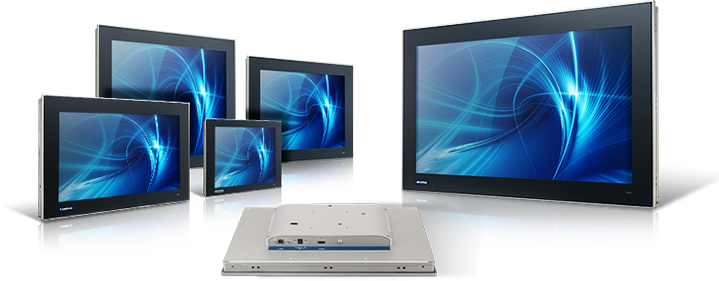

FPM-215-R8AE 15" XGA Industrial Monitors with Resistive Touch Control,Direct HDMI, DP, and VGA Ports

  1. 12" XGA/15" XGA TFT LED LCD with 50,000 backlight lifetime
  2. Direct HDMI, DP and VGA input interfaces
  3. Anti-glare screen with tempered glass
  4. Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
  5. Lockable I/O connectors
  6. Slim design enables easy installation

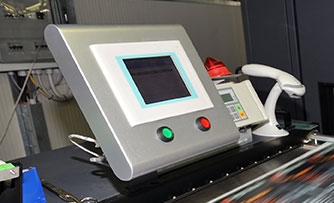

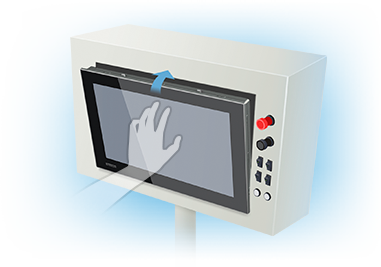

  7. Supports various mount options: panel, desktop, and VESA arm
Please visit via PC to place order/quote

Rs.40,587

Make an inquiry Add to Quote Add to Cart
Specifications
Category
Attribute
Value
Display*
Backlight Life (hrs)
70,000 hrs
Display*
Contrast Ratio
2000:1
Display*
Display Size
15"
Display*
Display Type
XGA TFT LCD with LED backlight
Display*
Luminance (cd/m2)
300
Display*
Max. Colors
16.2 M
Display*
Max. Resolution
1024 x 768
Display*
Viewing Angle (H/V°)
176/176
General
Certifications*
BSMI, CCC, CE, FCC Class A, UL, CB
General

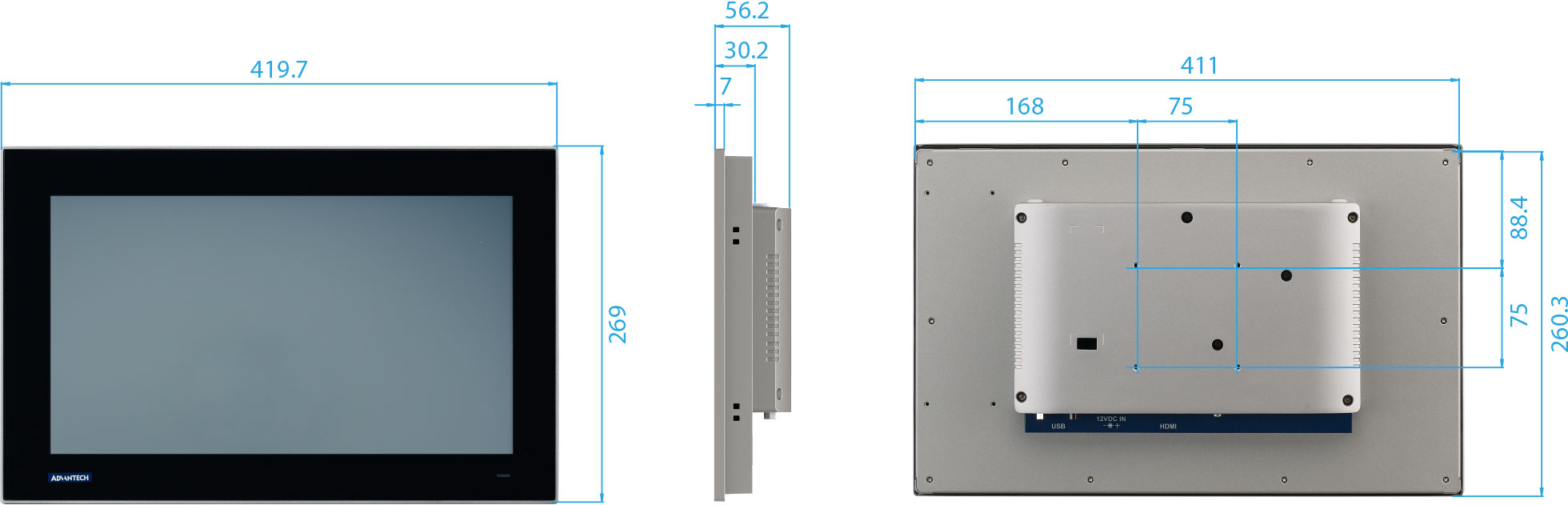

Dimensions (W x H x D)*
383.2 x 307.3 x 53.20 mm (15.08 x 12 x 2.09 in)
General
Enclosure*
Front panel: Die-casting aluminium,Rear cover: Die-casting aluminium
General
Mounting*
Panel, wall, desktop, VESA arm
General
Power Input*
12VDC
General
Video Port*
VGA / HDMI / DP
General
Weight (Net)*
4.8kg (10.58lbs)
Environment
Humidity (Storage)*
10 ~ 95% non-condensing
Environment
Operating Temperature
0 ~ 50° C (32 ~ 122° F)
Environment
Storage Temperature
-20 ~ 60°C (-4 ~ 140°F)
Environment
Vibration*
5 ~ 500 Hz, 1 Grms (Operating, Random)
Environment
Waterproof*
Front panel IP66
Touchscreen
Hardness*
3H
Touchscreen
OS Support*
Windows® 7, 8, 10, XPe, CE and Linux
Touchscreen

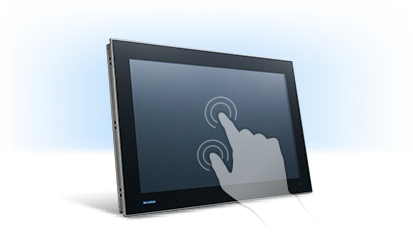

Touch Type
5-wire, analog resistive
USB
Recommended Peripherals

Accessory Products

Part No. Description Unit Price Qty
1700001524 Power Cord UL 3P 10A 125V 183cm Rs.219
1700008921 Power Cord PSE 3P 7A 125V 183cm Rs.235
170203180A Power Cord BSI 3P 2.5A 250V 183cm Rs.500
170203183C Power Cord EU 3P 2.5A 250V 183cm Rs.255
Part No. Qty
1700001524
Power Cord UL 3P 10A 125V 183cm
Unit Price: Rs.219
1700008921
Power Cord PSE 3P 7A 125V 183cm
Unit Price: Rs.235
170203180A
Power Cord BSI 3P 2.5A 250V 183cm
Unit Price: Rs.500
170203183C
Power Cord EU 3P 2.5A 250V 183cm
Unit Price: Rs.255
